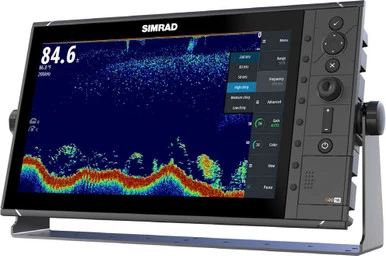

Simrad 000-12187-001 S2016 16 In. Fishfinder – Wide Screen

The Simrad 000-12187-001 S2016 16 in. Fishfinder combines the Broadband Sounder module with CHIRP technology, 16 in. widescreen display for an extensive on-screen history, and intuitive keypad-driven operation. Robust and offering both bracket and flush-mount installation options, the S2016 was designed to meet the need for a dedicated fish finder display aboard coastal and offshore fishing vessels.

Simrad 000-12187-001 S2016 16 in. Fishfinder Includes:

• Dedicated fish-finder with integrated Broadband Sounder module and CHIRP technology
• High depth penetration and ping speed
• Vertical heave compensation
• 16 in. 1366 x 768-pixel high-definition widescreen LCD
• HDMI output for mirrored secondary display
• See clearly with White Line, White Marker, and Colour Erase features
• Simple operation with 8 direct-access menu keys
• Bracket and flush mounting options (bracket included)
• Full-sized SD card slot for logs and software updates
• Ethernet, NMEA0183 & NMEA2000 connectivity
• Integrated Single-Channel Broadband Sounder Module
• CHIRP Technology
• Vertical Heave Compensation
• Keypad Operation with Direct-Access Menu Keys
• Rugged Design with Flexible Mounting Options
• Networking & Expansion
• HDMI Output for Display Mirroring
• Sonar Log Recording – ciBioBase and Insight Genesis Compatible
• Specifications:
  • • Languages: 40 languages
    • Screen Brightness: 400 cd/m2
    • Echosounder Max Depths: 3,000m / 10,000 ft. (transducer-dependent)
    • Echosounder Transducers: Standard Broadband and single-channel CHIRP Transducers
    • Echosounder Frequencies: CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz
    • Display Size: 16 in. Widescreen
    • Display Resolution: 1366 x 768
    • Display Type: 16 in. LED-backlit Colour TFT LCD
    • Connectors: 1x NMEA0183, 1x NMEA2000, 1x Ethernet, 1x HDMI output
    • Waterproof Standard/rating: IPx7
    • Product Width: 455.5mm / 17.93 in.
    • Product Depth: 82.3mm / 3.24 in.
    • Product Height: 260.1mm / 10.24 in.
    • Power Supply (Supply Voltage): 10.8-31.2 V DC
